Use a suppressor on your AK with our silencer adapter M24x1.5
Kalashnikov-type assault rifles are not the easiest to silence. First because they are not very hermetic, then because their threaded barrel is rarely in a usual standard. That’s why we’re offering this silencer adapter M24x1.5, to transform the said M24x1.5 to a more widespread standard. So you will be able to use the silencer that you usually dedicate to your .308 long range rifle or your AR on your AK.

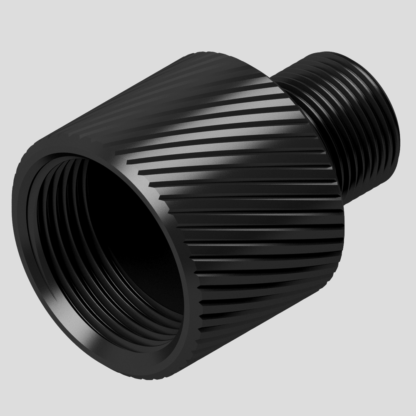

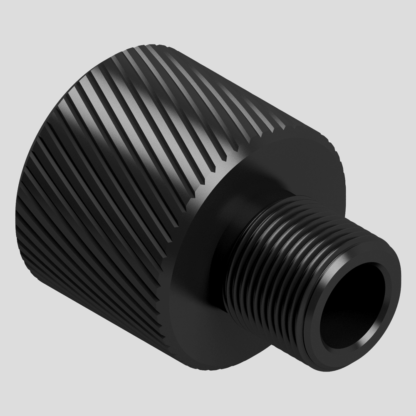

This thread converter has two ends. The first screws directly to the end of your gun on its M24x1.5 thread. The second offers a male thread that will accommodate your silencer. Choose it from the drop-down menu, depending on the suppressor you’re considering. Several output threads are available: 5/8×24 TPI, M14x1, M16x1, 1/2 UNEF (1/2×28 TPI)…
A thread converter for AK74 and AK100 Series
Beware, not all AK-derived weapons are compatible with this silencer adapter M24x1.5. This standard is mainly found on the newer models. AK74 in 5.45×39 mm and .223 Remington, and the AK100 family (AK101 to AK108) in 7.62×39 mm, 5.45×39 mm and 5.56 NATO.
This includes long-barrel versions, but also short-barrel versions (also known as Krinkov). Like the Bulgarian Arsenal SAM7SFK for example. One exception to note : Yugoslavian AKs. For these we already produce a silencer adapter for Zastava M92 and M85.
To make sure that your own weapon is in M24x1.5, measure the outer diameter of its thread with a caliper. If you are just under 24 mm (0.95″) in diameter (say 0.93″ or 0.94″), then this silencer adapter will be the right one. As a reminder the M24x1.5 is also called M24x150 metric to the right, or even M24x150 RH.
Watch out! Several of our customers have told us that they cannot screw this adapter on their AK 104. The barrel extends beyond the thread, making screwing impossible. An alternative adapter for this type of profile is currently being developed.
The silencer adapter M24x1.5 : a french CNC custom part
When it comes to AK thread converters, you cannot lean directly on the front sight gas bloc. This would not be an adequate reference face. Therefore, the screwing stop must be inside the adapter, on the muzzle face of the barrel. This ensure perfect concentricity to avoid the risks of baffle strikes.
We make this silencer adapter on CNC machines in S235JR steel. Aware that AK enthusiasts often practice fast rate of fire, we wanted it to be pretty thick. In addition, its hot bluing protects it from corrosion and will match the finish of your weapon.
This silencer adapter was originally a special request from one of our customers. So if you too have an AK with an exotic thread to equip, contact us,we will do our best to develop something that performs well for you.
